OLED Glove Box Systems

Controlled inert-atmosphere solutions for OLED fabrication, thin-film coating, inkjet printing, encapsulation and device packaging.

SUPERIOR PERFORMANCEBEST

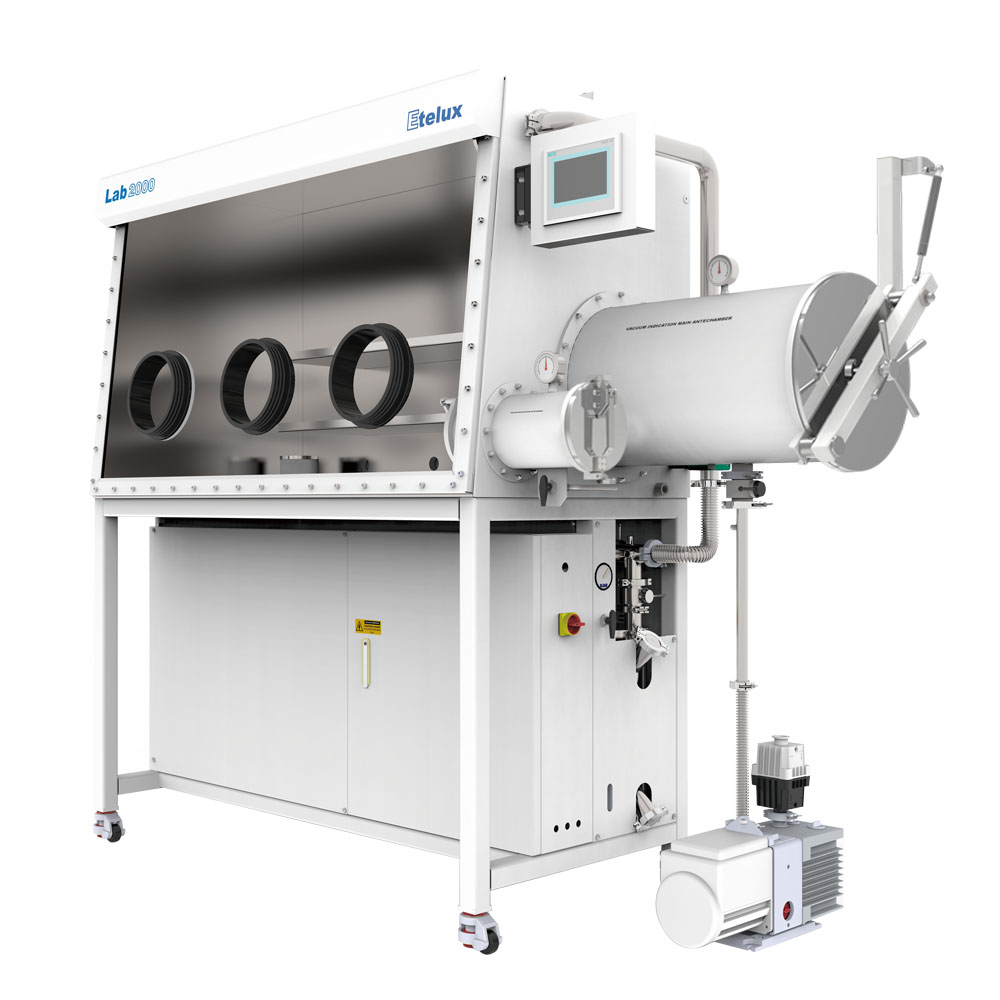

LAB2000 1500SIX-GLOVE-PORTSYSTEM
QUALITYENGINEERINGHOT

New Products

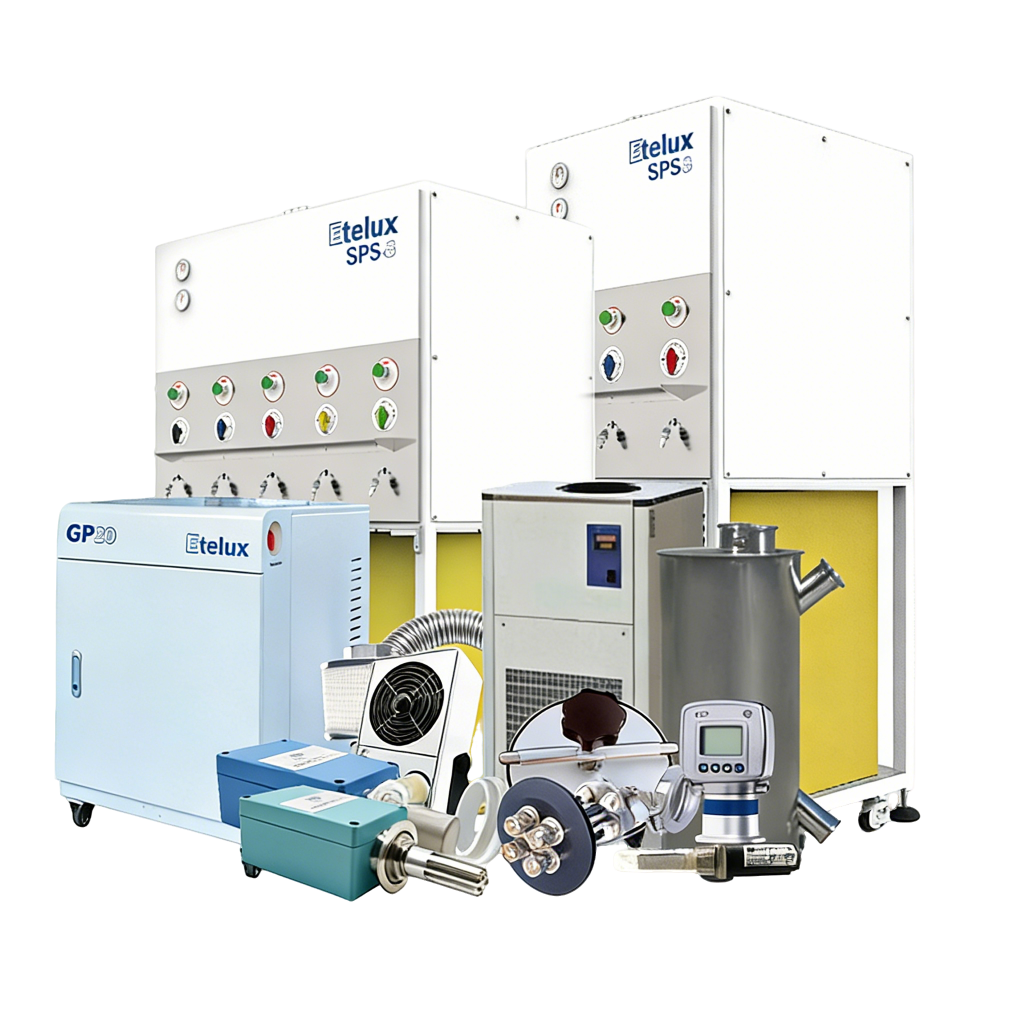

ACCESSORY SERIES

Exclusive and Glove Compartment

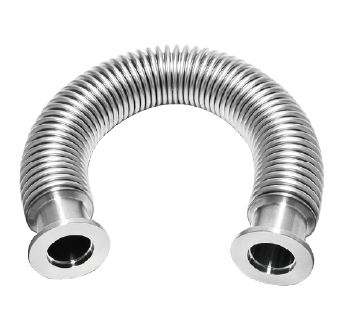

Bellows hose

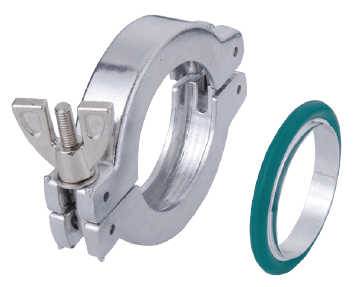

Clamps

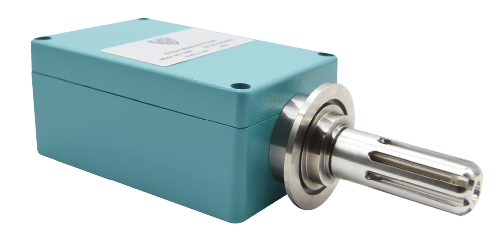

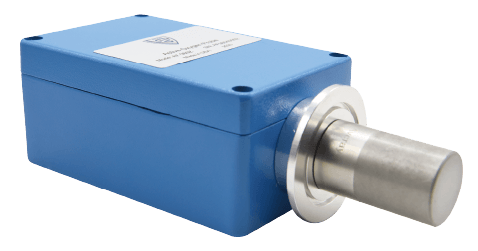

Dew analyzer

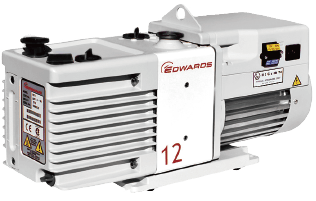

Vacuum pump

Efficient filter cartridge

Dew analyzer

Dew analyzer

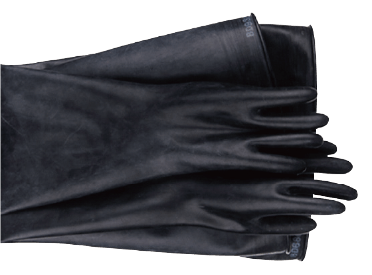

Gloves

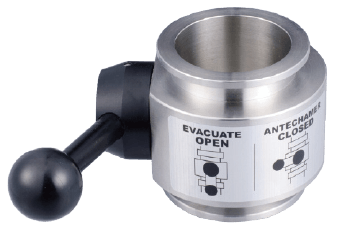

vacuum butterfly valve

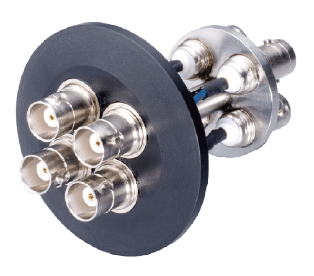

KF40-BNC connector

Customization & Application

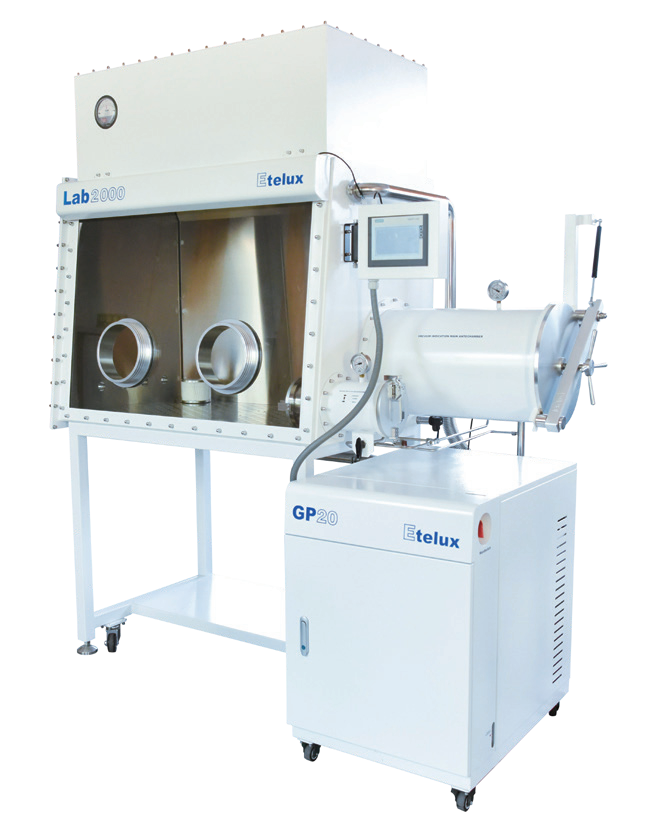

Class-100 clean glovebox

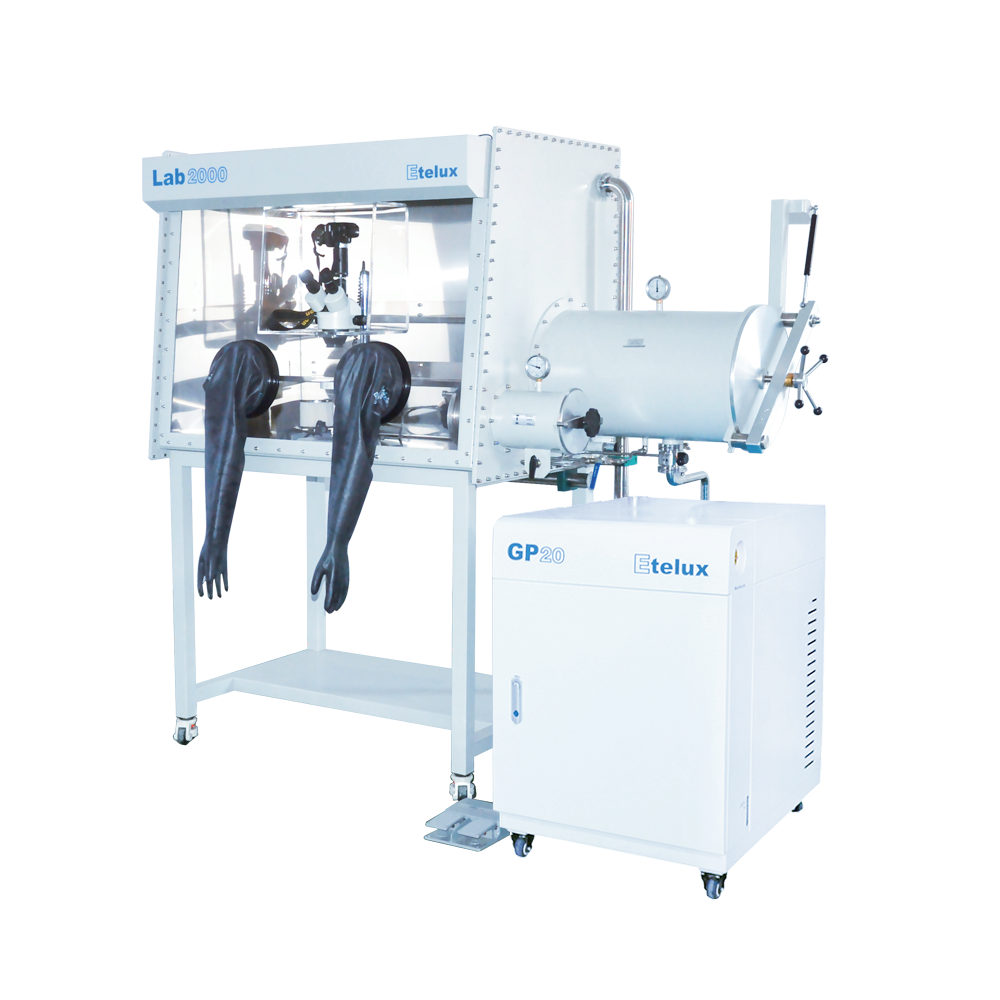

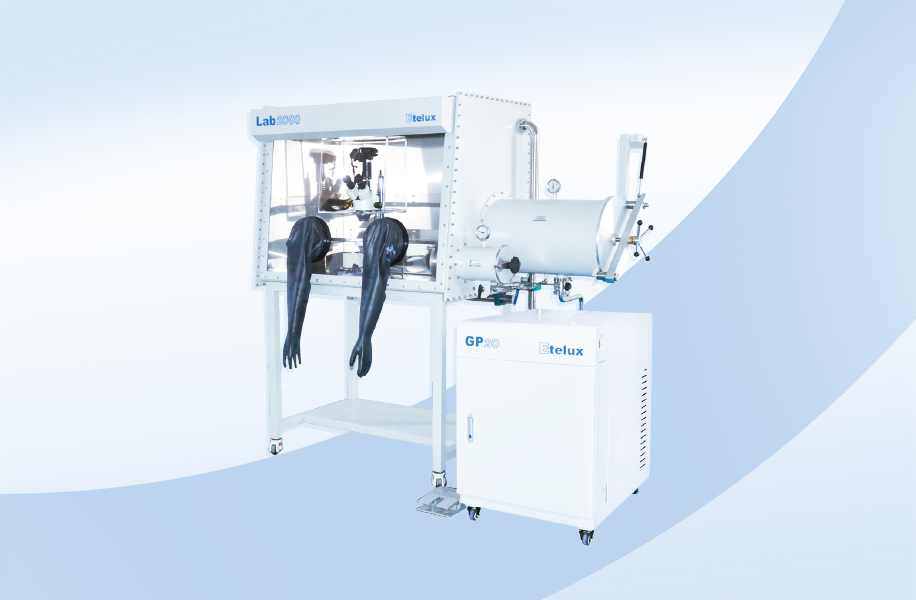

Microscope glovebox

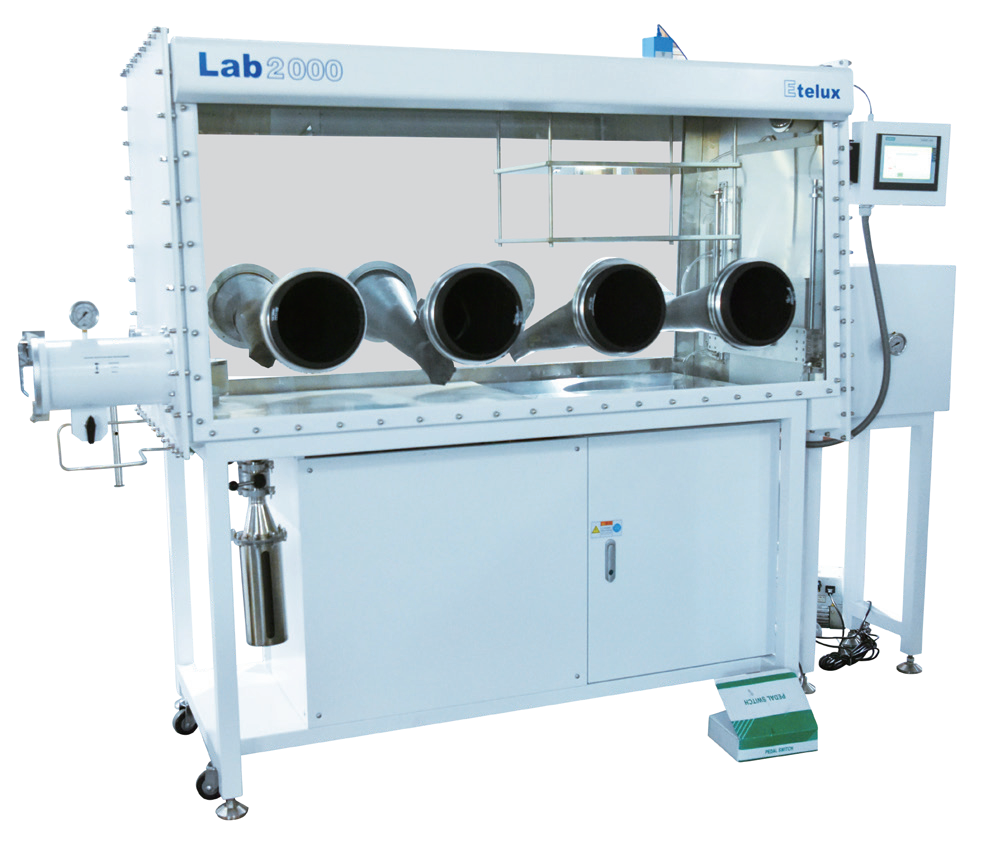

Custom oven glovebox

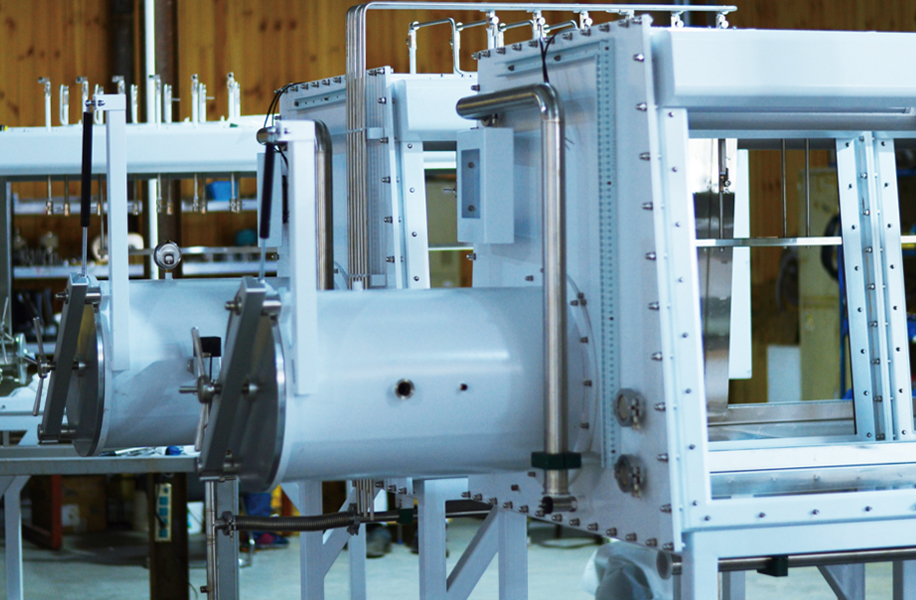

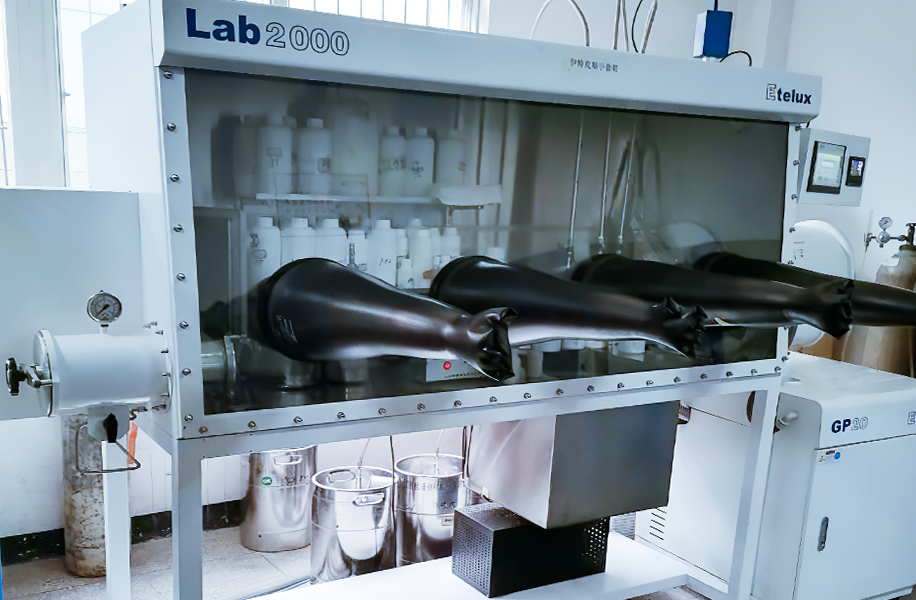

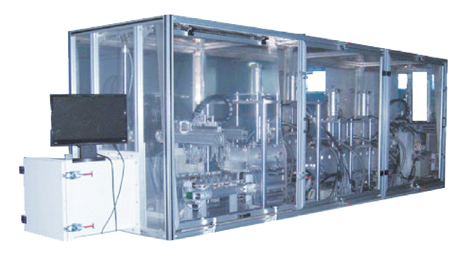

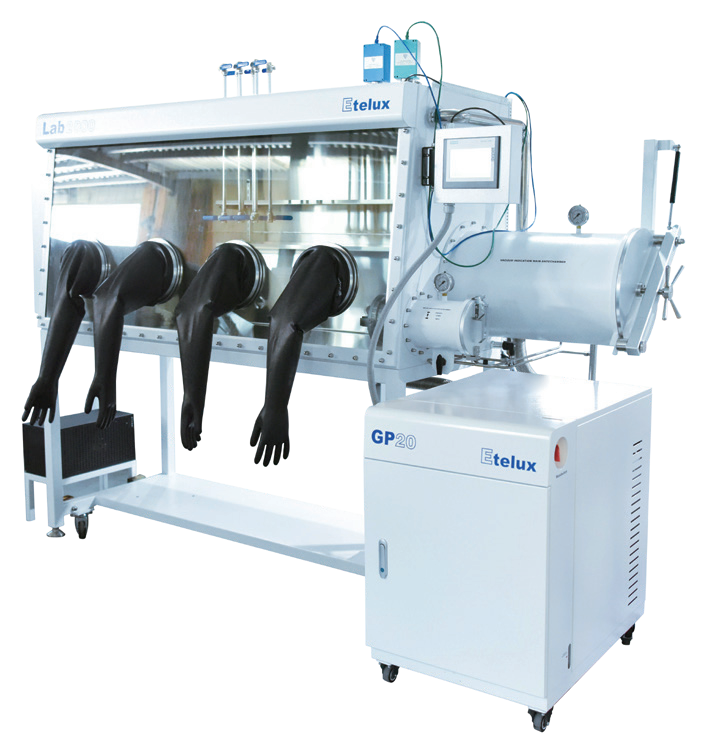

Electrolyte-filling glovebox

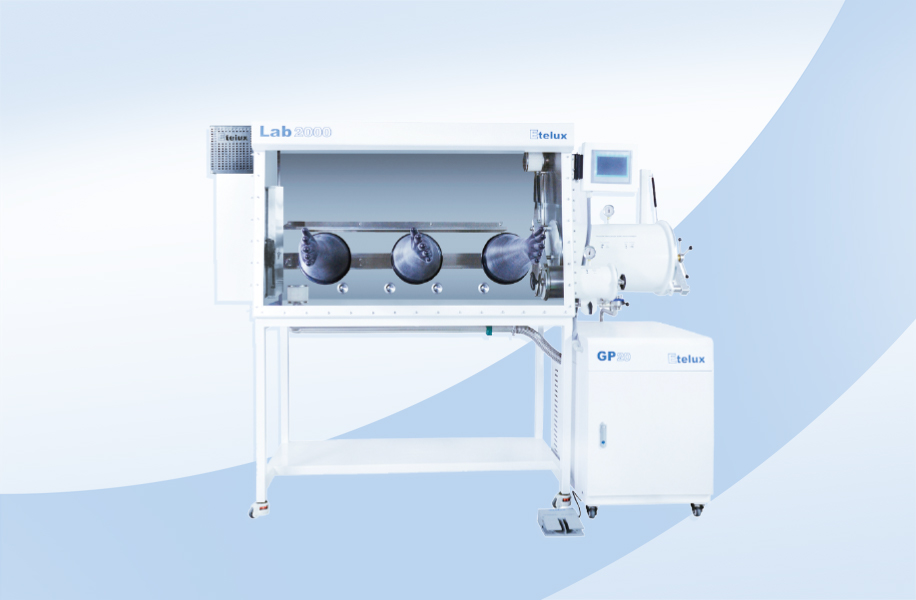

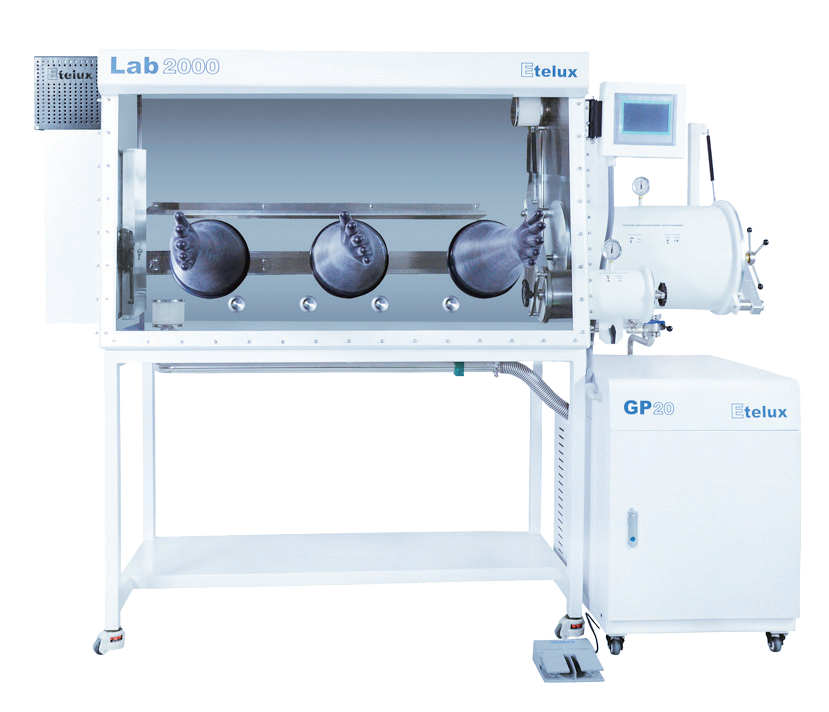

Three-glove-port glovebox with refrigerator

Custom low-temperature cold-trap glovebox

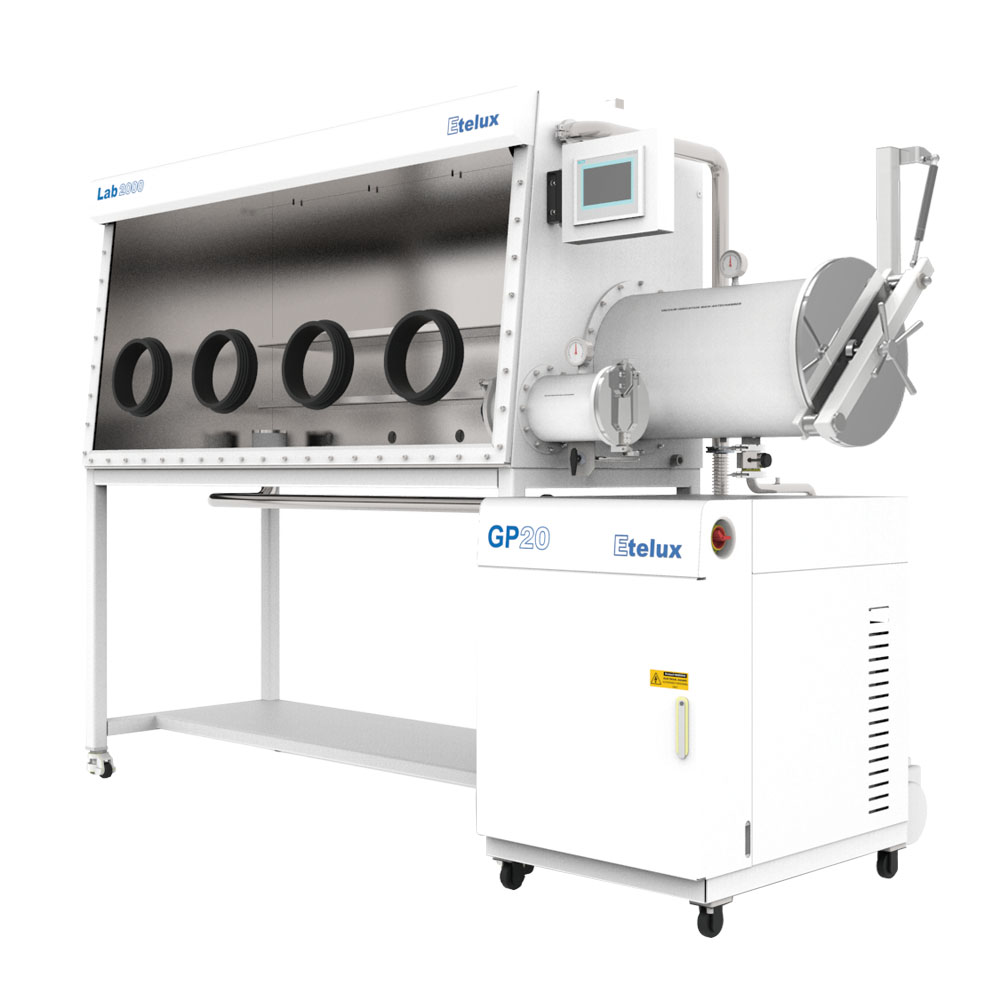

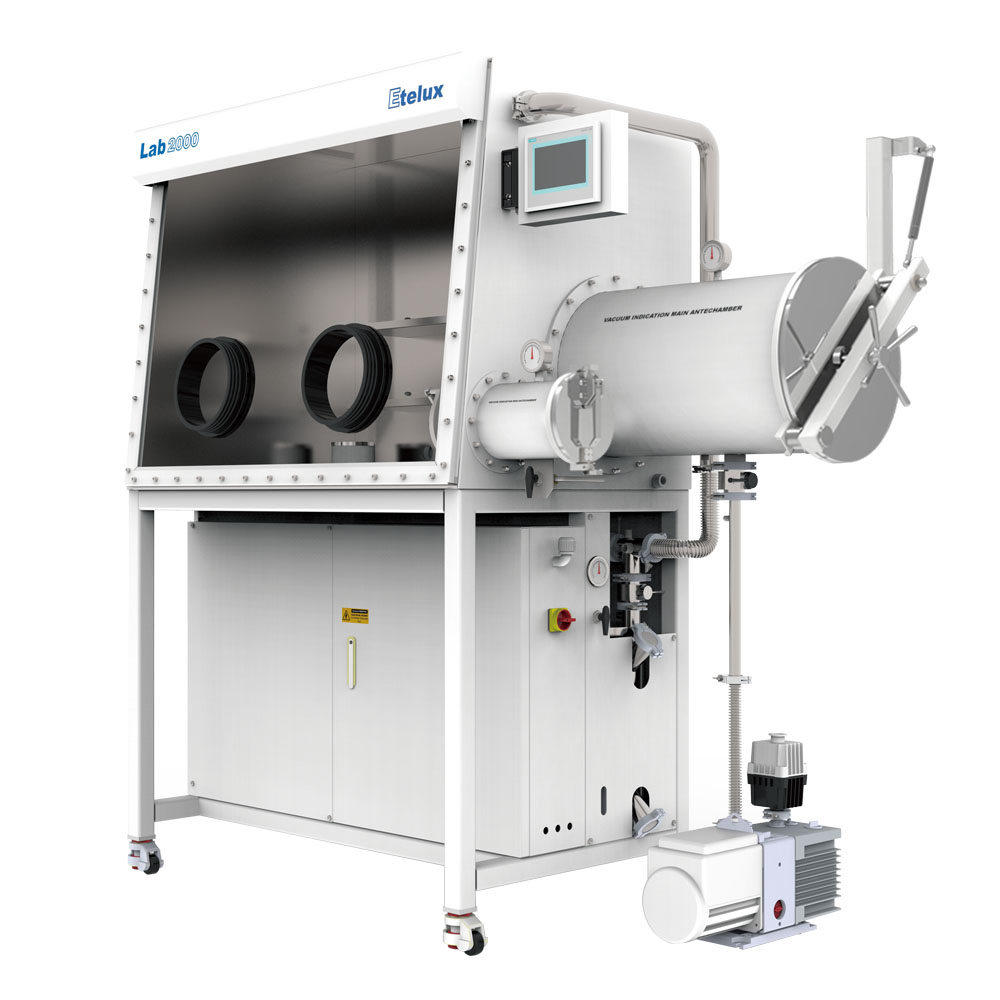

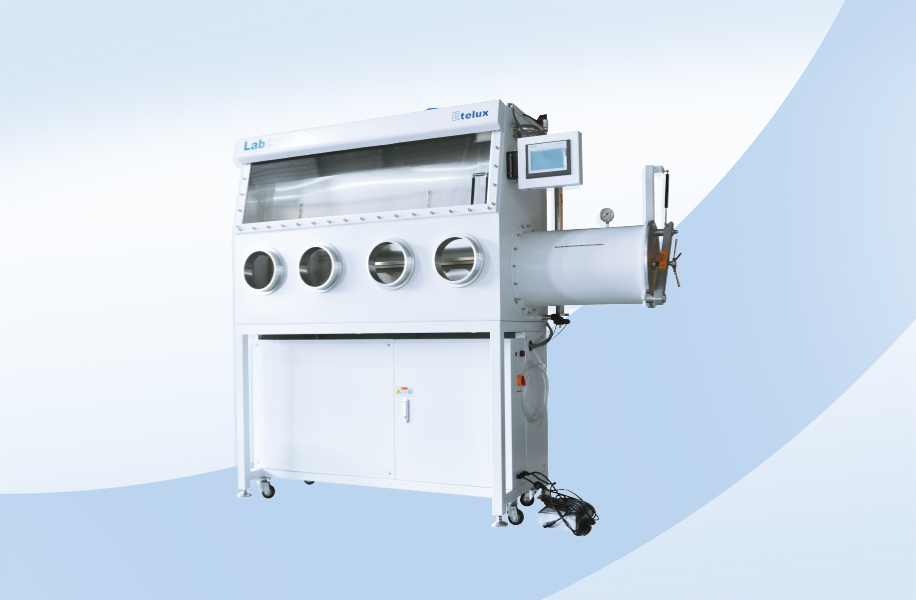

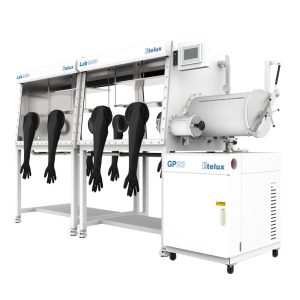

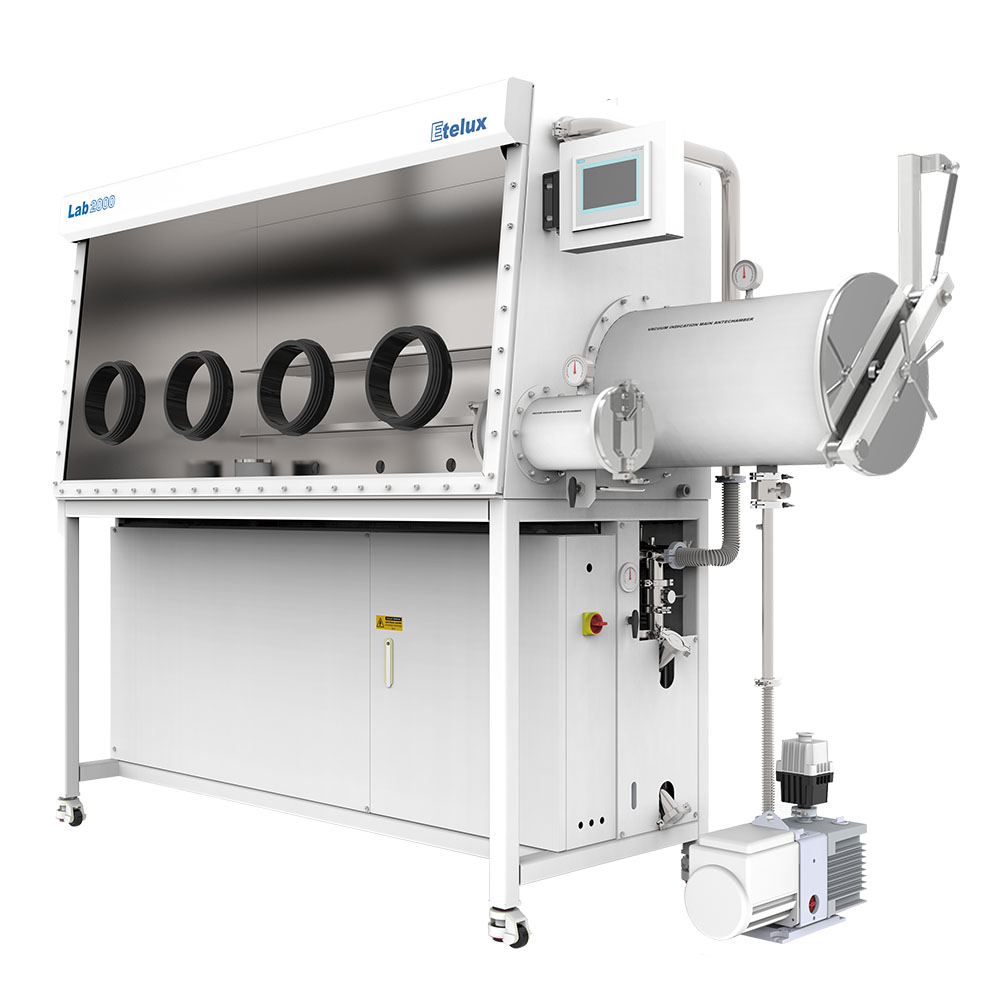

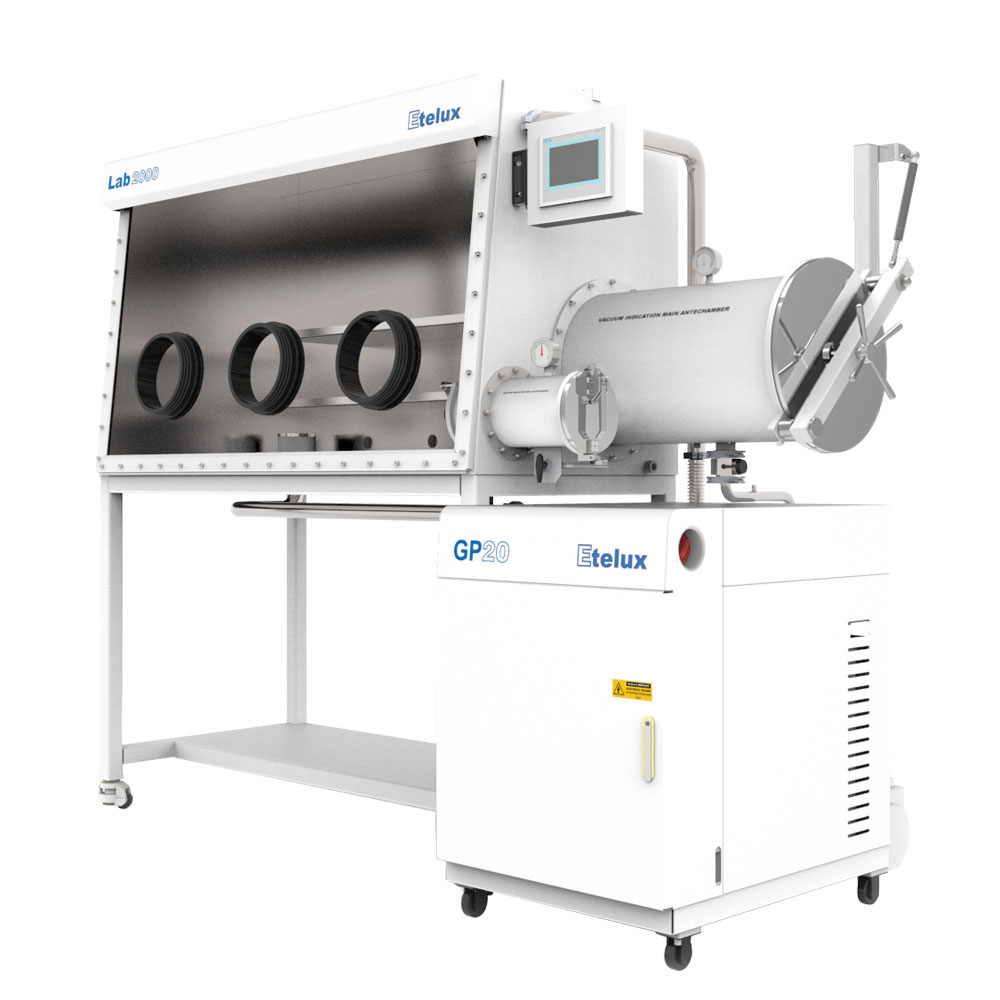

Standard Glove Box

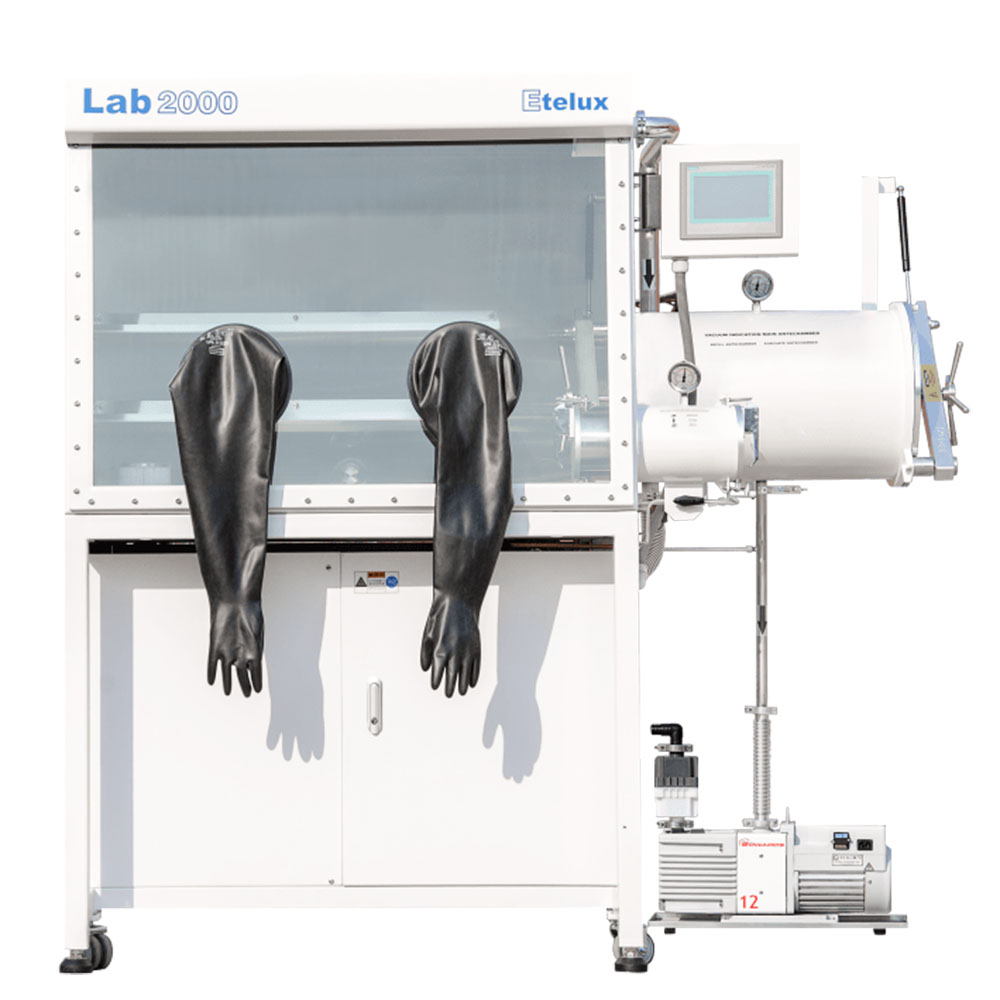

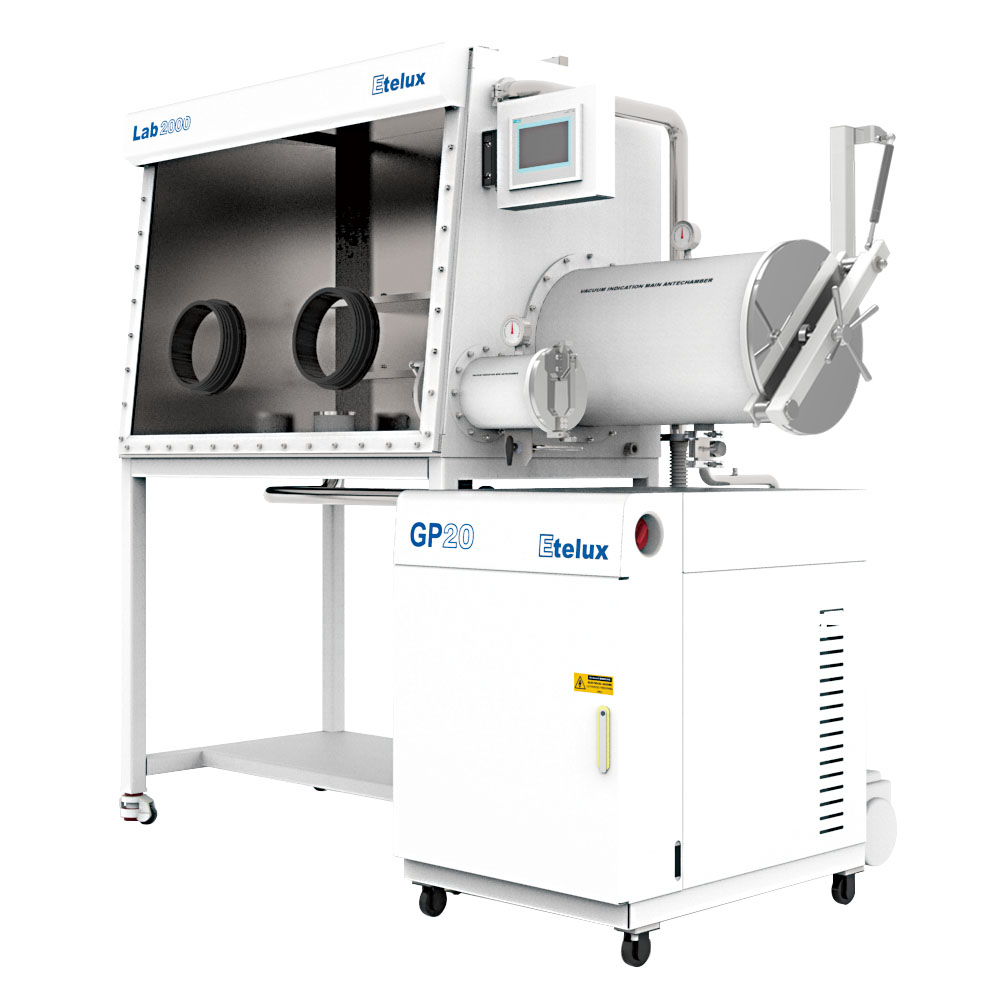

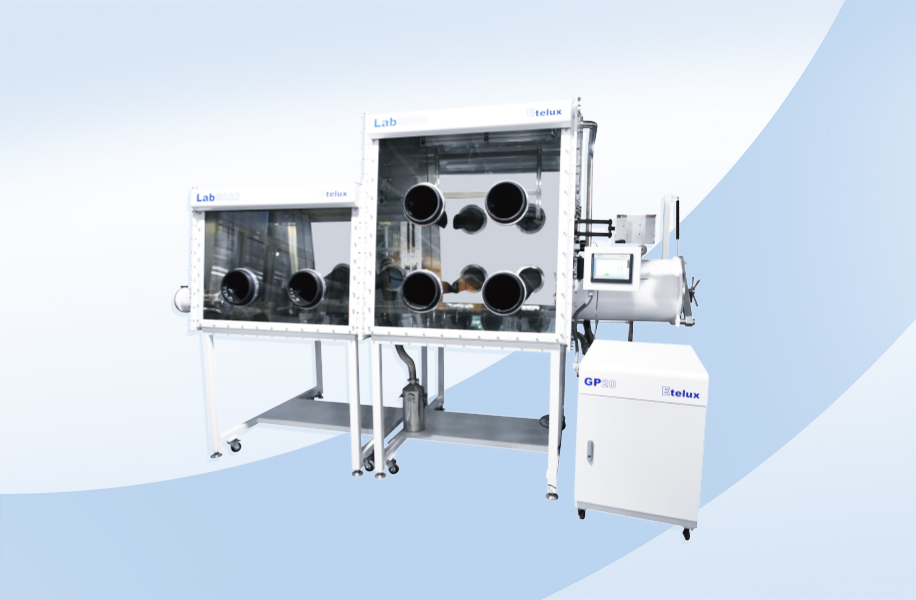

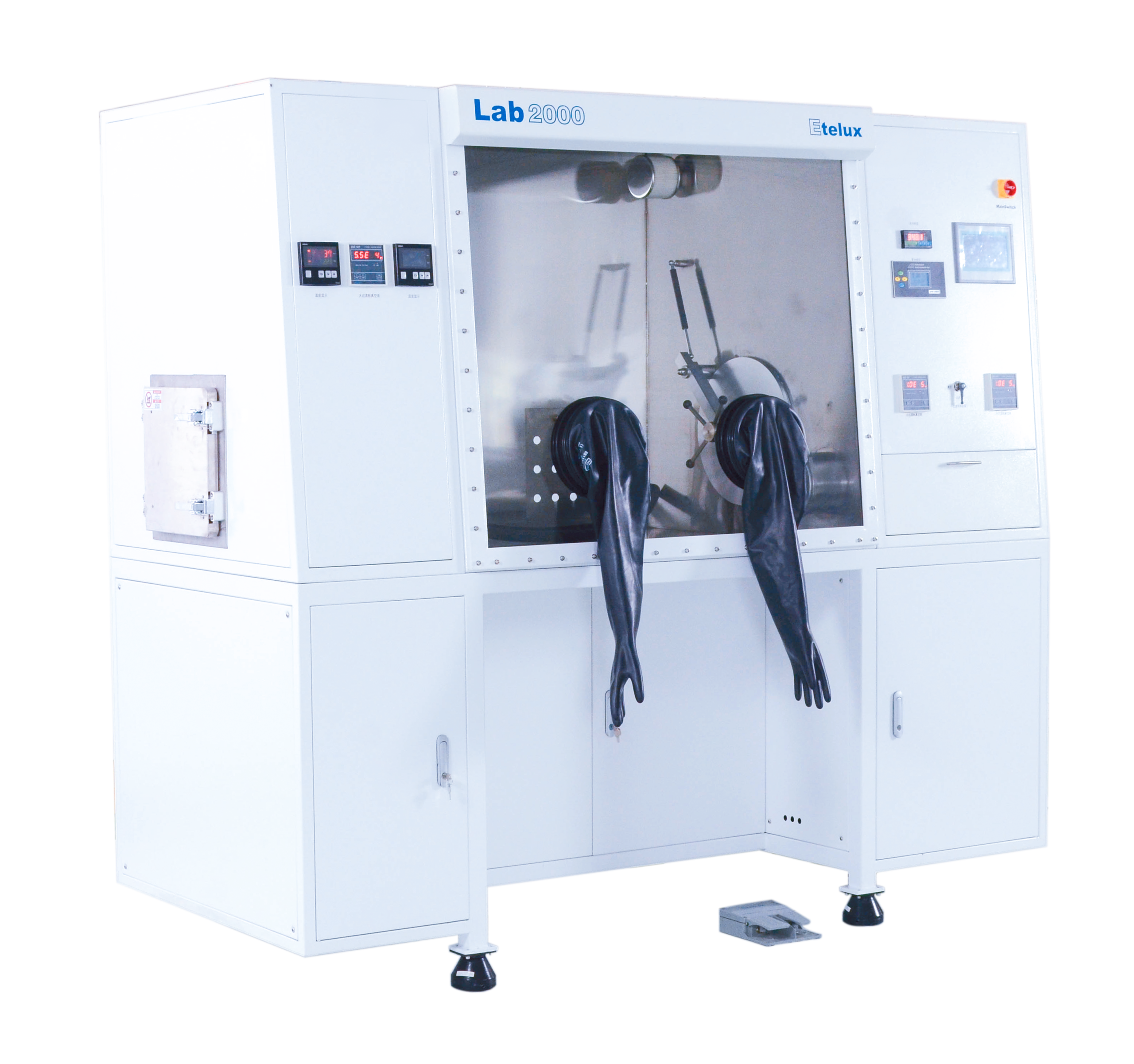

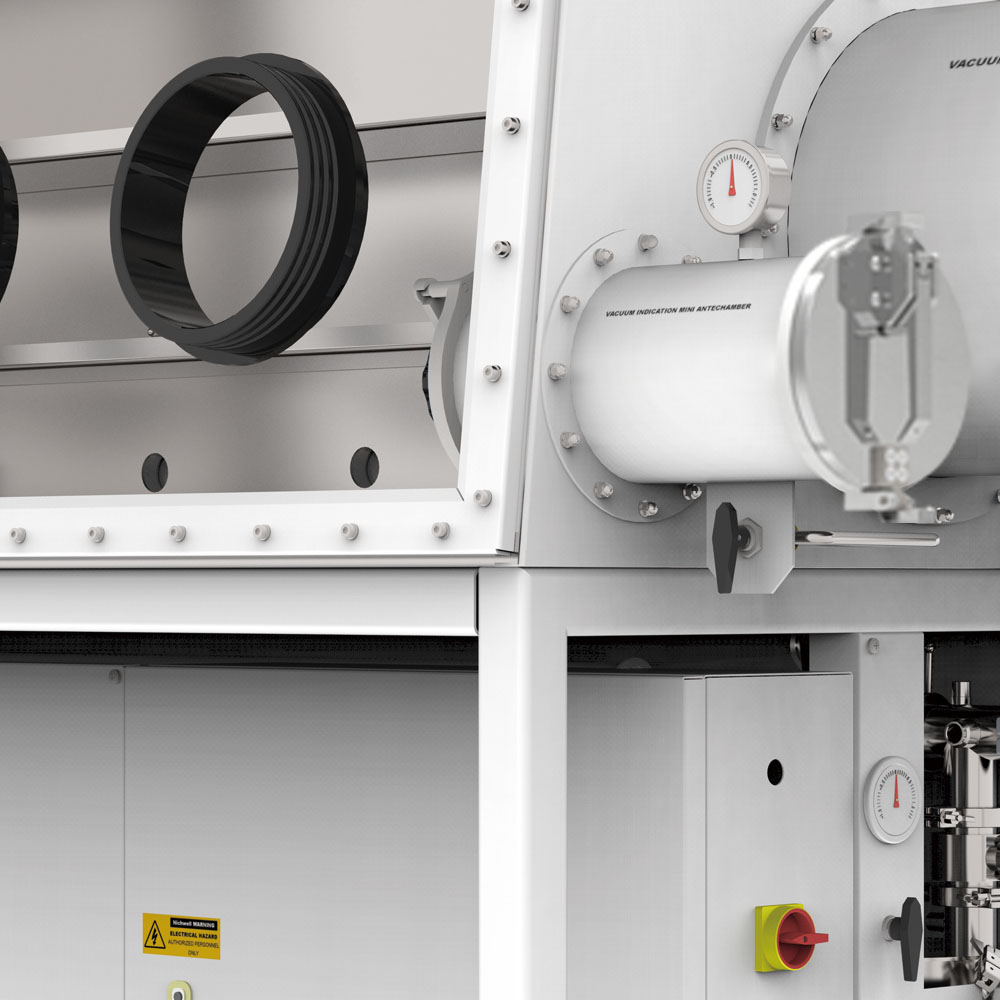

The Lab2000 system includes a closed chamber, a set of (main and mini) antichamber, a rotary vane vacuum pump, and a set of circulating purification system integrated with a microcontroller operation panel.

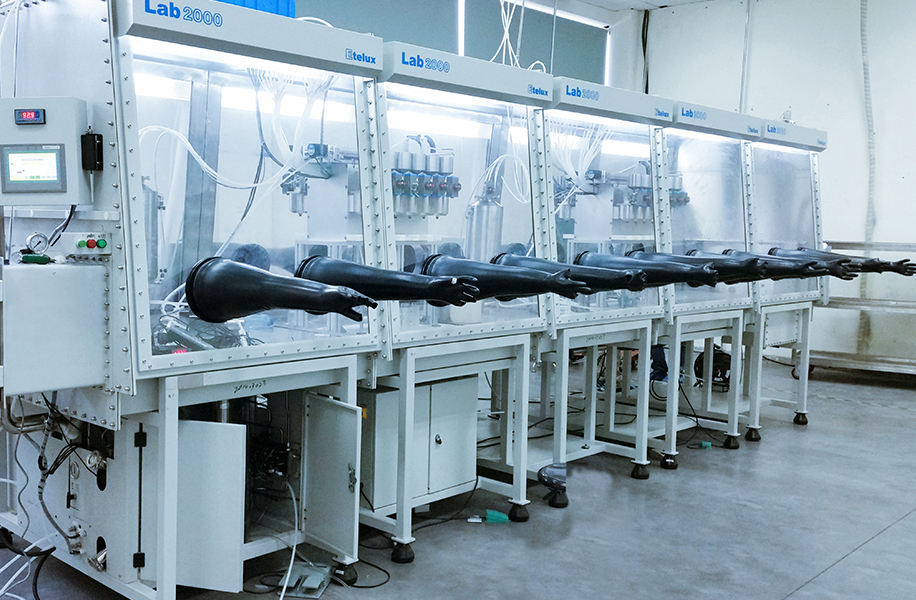

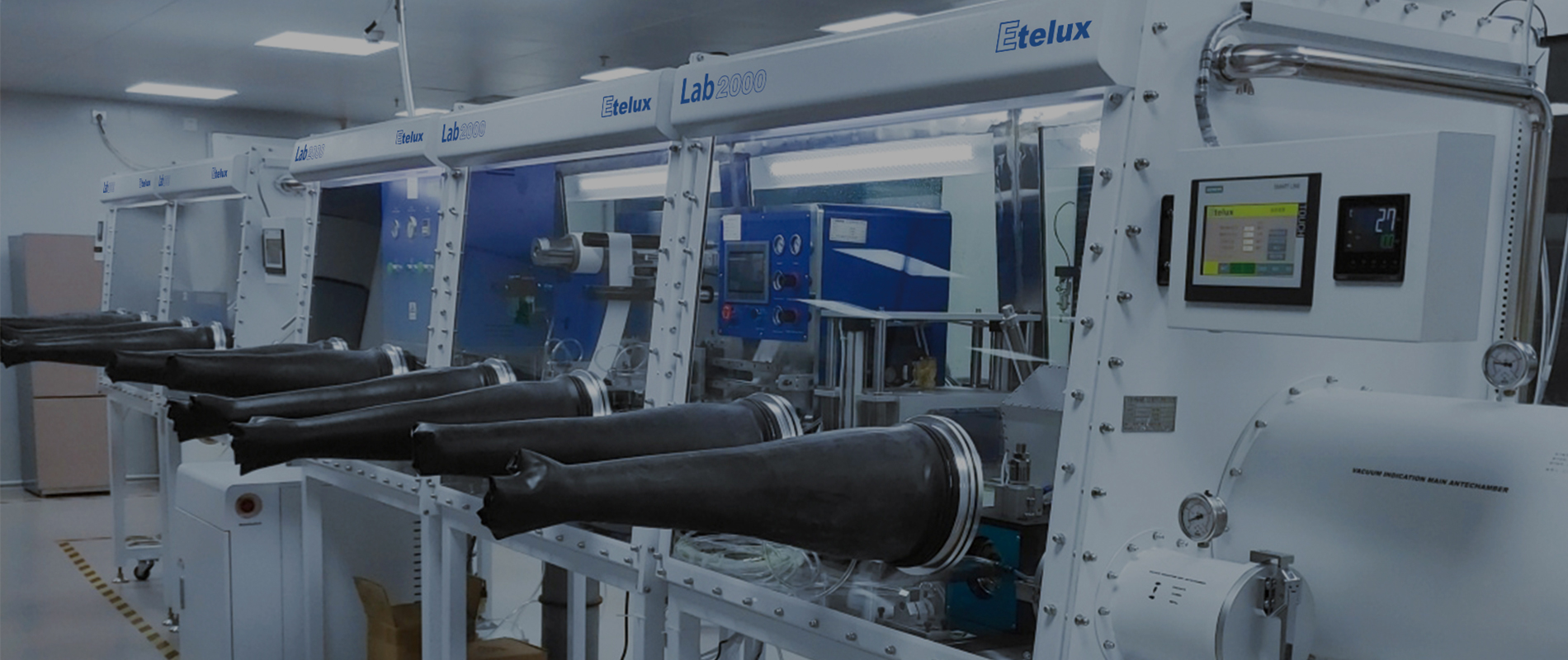

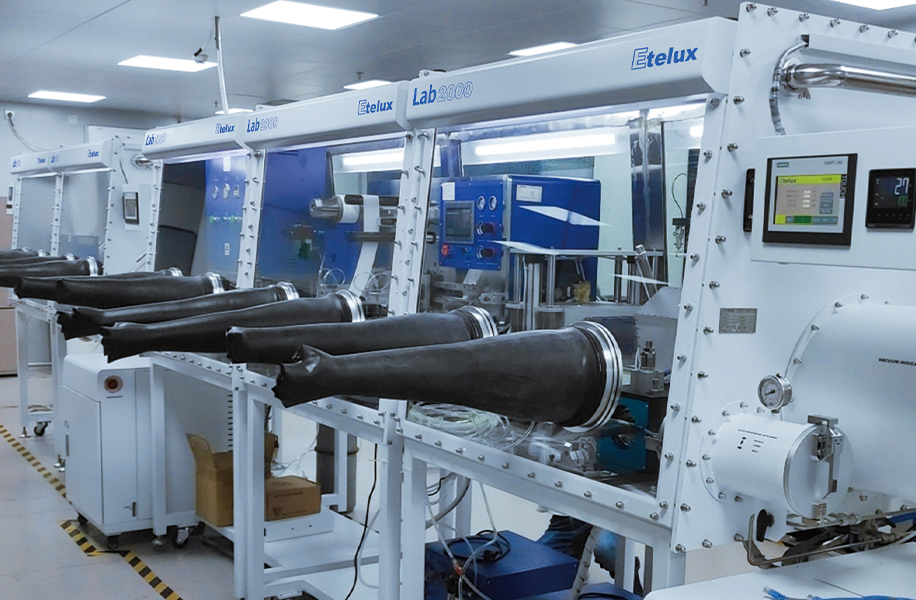

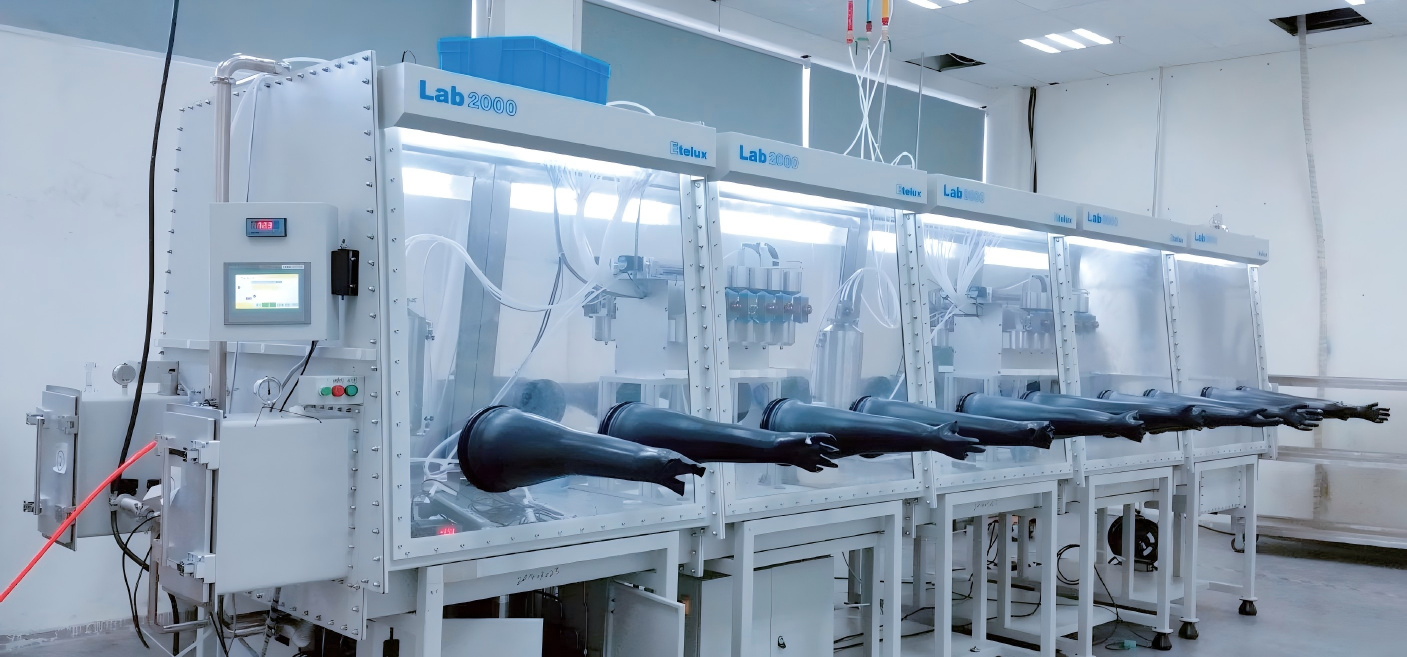

Lithium battery integrated glovebox

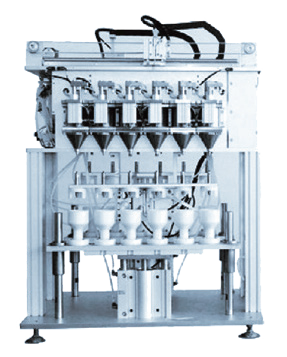

Supercapacitor

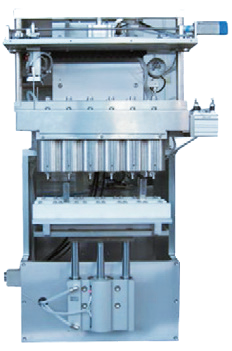

Supercapacitor

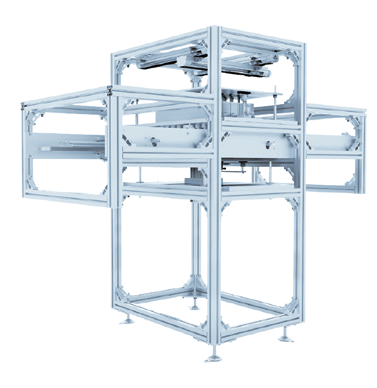

Cylindrical battery

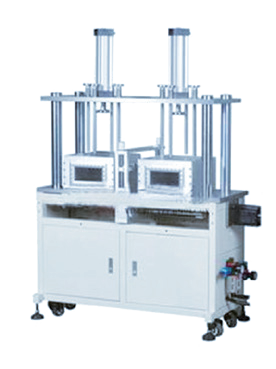

Vacuum-chamber liquid injection
Spin-rolling sealing
Cylindrical battery

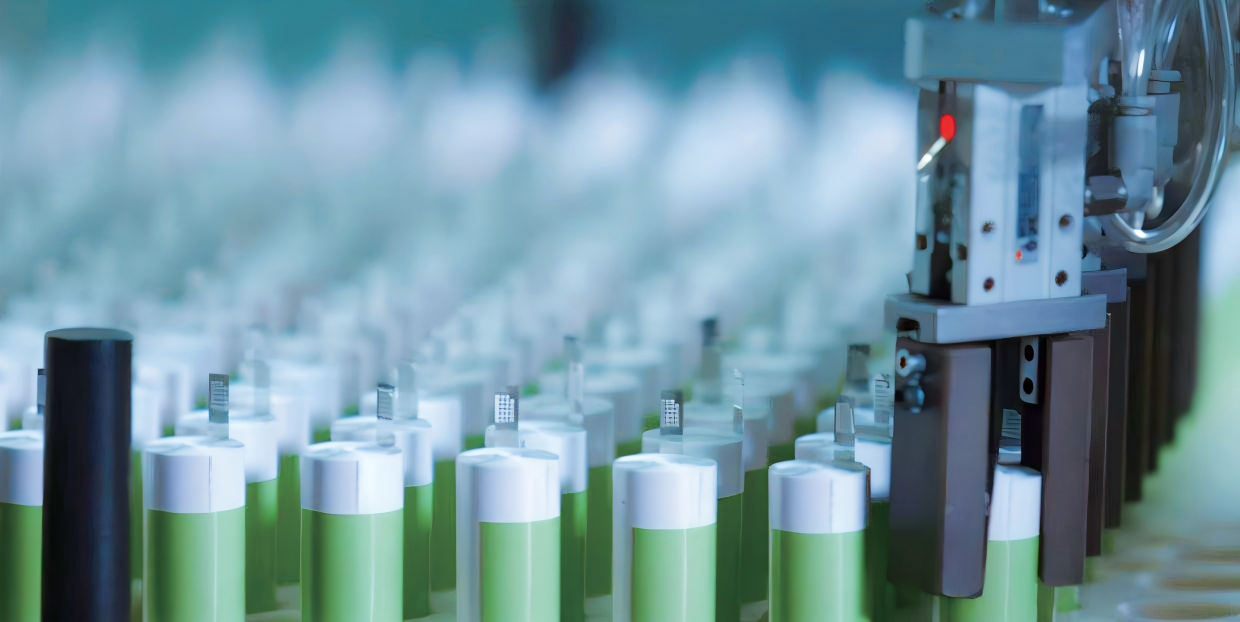

lithium battery automated assembly production line

Technical parameters

■ Chamber dimensions: glovebox configured according to the electrolyte-filling machine
■ Material: full stainless-steel construction(Type 304), surface metal brushing process; thickness 3 mm
■ Control system: includes self-diagnosis and power-failure auto-restart features, with pressure control and adaptive functions
■ Automatic control, circulation control, password protection; vacuum chamber control uses LCD display

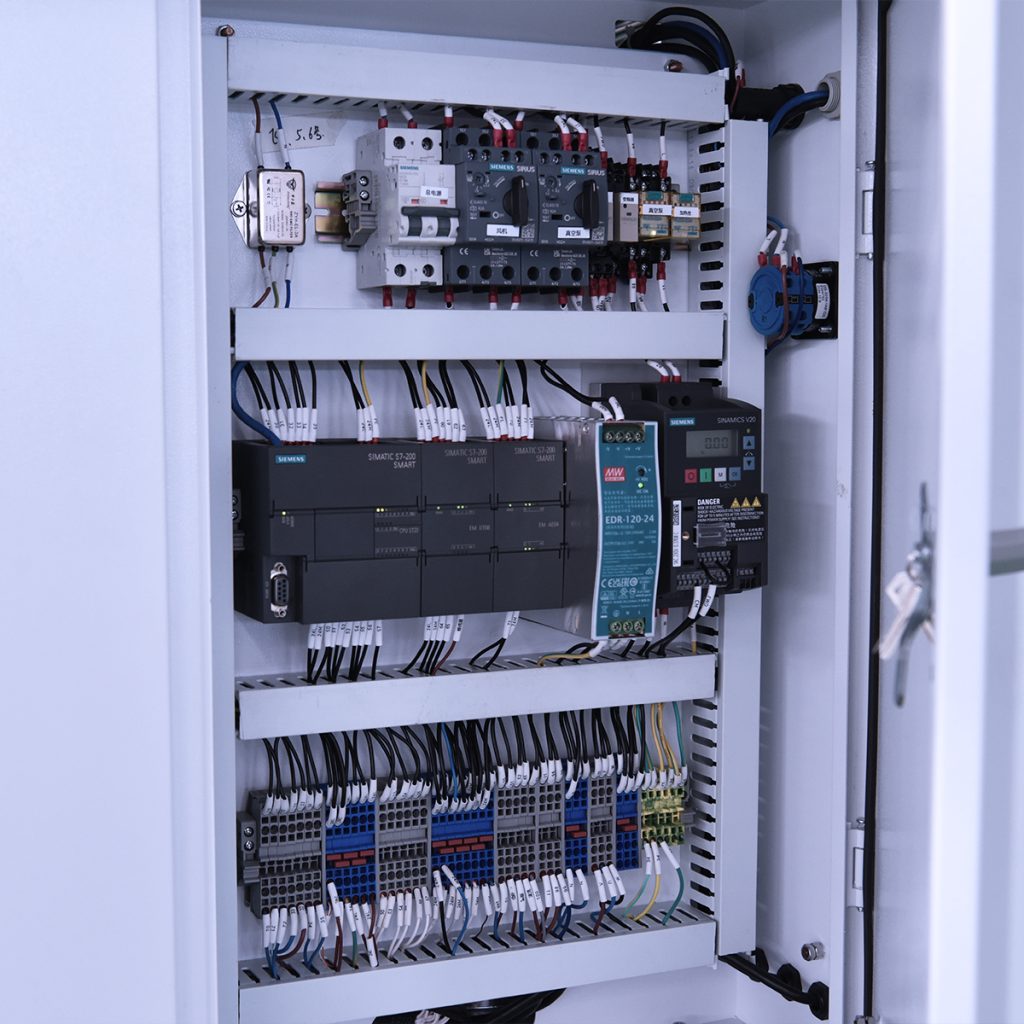

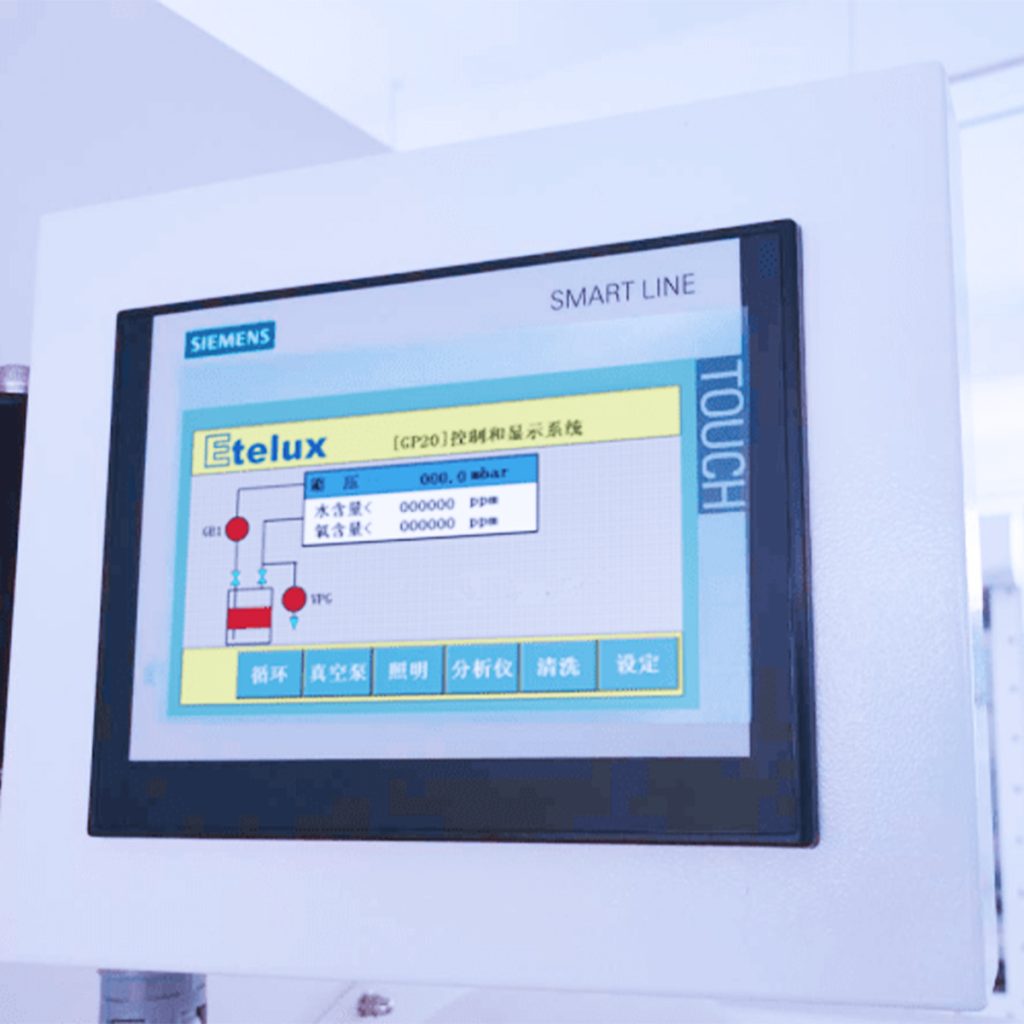

■ The control unit uses German Siemens PLC with touchscreen operation
■ Rated power: 2.0 kW
■ Working gas pressure: 0.4–0.6 MPa
■ Purification capability: O₂< 0.1 ppm, H₂O< 0.1 ppm(dew point< −78 °C)
■ Menu options: Chinese/ English

This device is used to prepare multi-component, multi-layer composite dense metal/non-metal, metal oxide/nitride/nitrogen oxide, non-metal oxide/nitride/nitrogen oxide, and other thin film materials with uniform thickness. The target material can be a single component or multi-component material of metal/non-metal (including magnetic target material), or a single component or multi-component material of metal/non-metal compound. The sample can be annealed in situ at the thin film deposition site in the vacuum chamber of the equipment system. In addition, samples coated by magnetron sputtering can undergo selenization and sulfurization treatment. Can be applied in fields such as materials science, physics, chemistry, microelectronics, optoelectronics, energy, catalysis, nanotechnology, etc.

Laboratory & Chemistry

Laboratory and chemistry workflows should be reviewed against material sensitivity, target atmosphere, chamber layout, purification and transfer requirements.

Batteries

Battery research configurations can be planned around material handling, electrode preparation, transfer frequency and connected process equipment.

Personal Protection

Review containment, pressure, filtration, transfer and operator-workflow requirements for the intended controlled-atmosphere application.

Glove box for Your Application!

Configuration support for research and controlled production

WHY CHOOSE ETELUX

Etelux manufactures glove box and vacuum coating systems for laboratory and controlled-production applications. Our team reviews chamber, atmosphere, transfer and equipment-integration requirements.

Glove Box Manufacturing Experience

Our manufacturing and application teams support standard and application-specific glove box configurations.

Application Engineering

Engineering review connects the material, atmosphere and process requirements with chamber layout, purification, transfer and equipment interfaces.

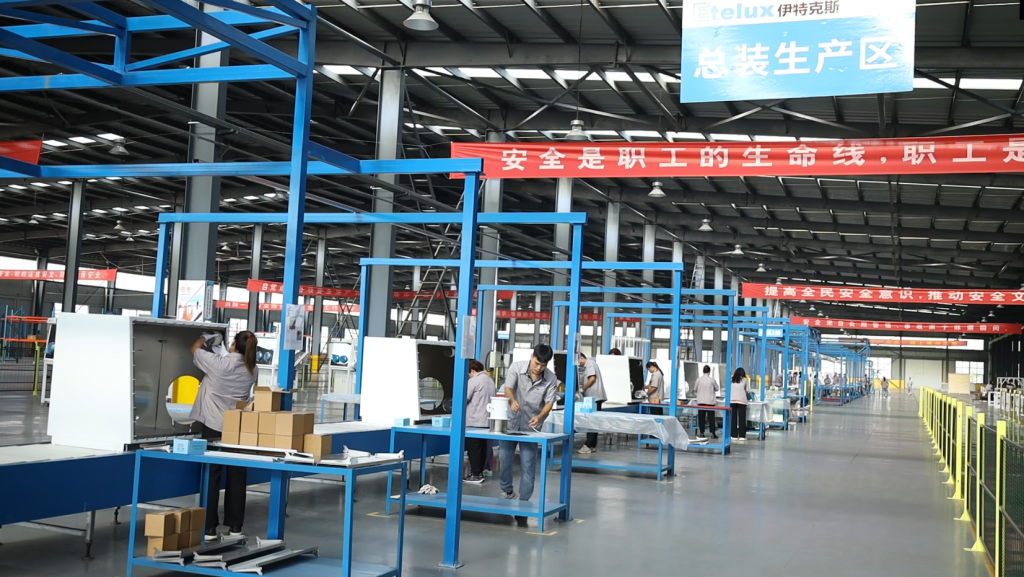

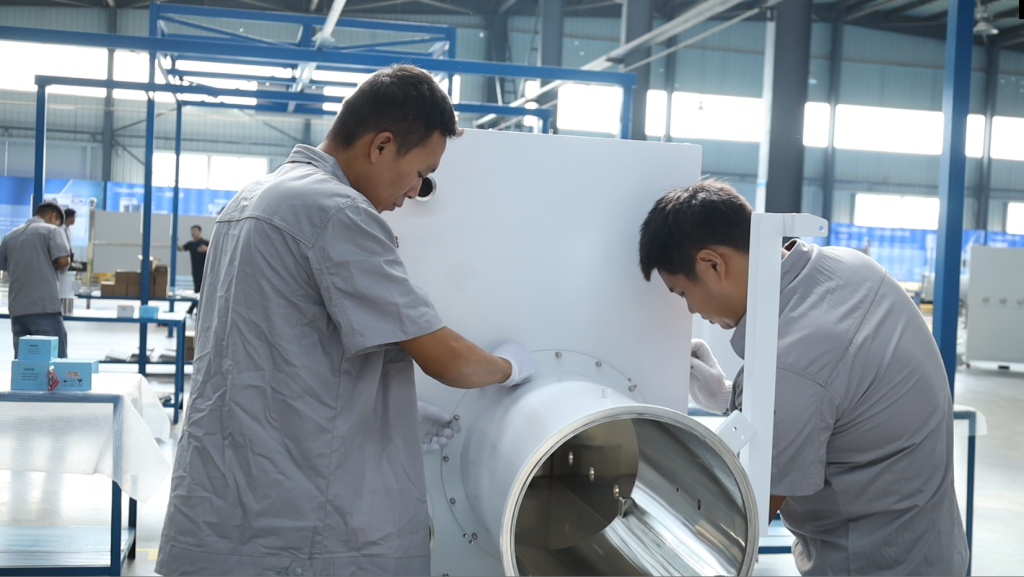

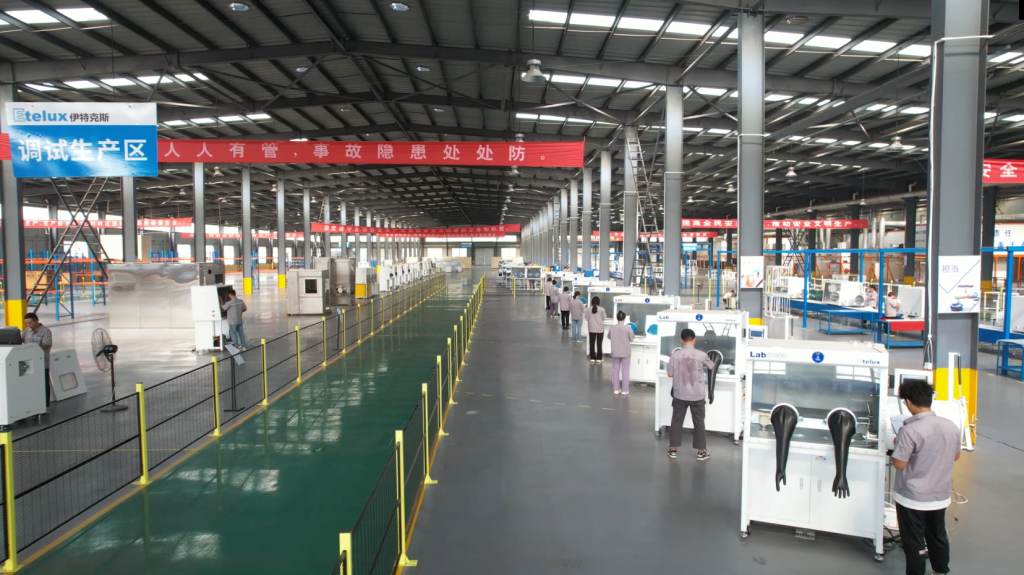

Advanced Production Equipment

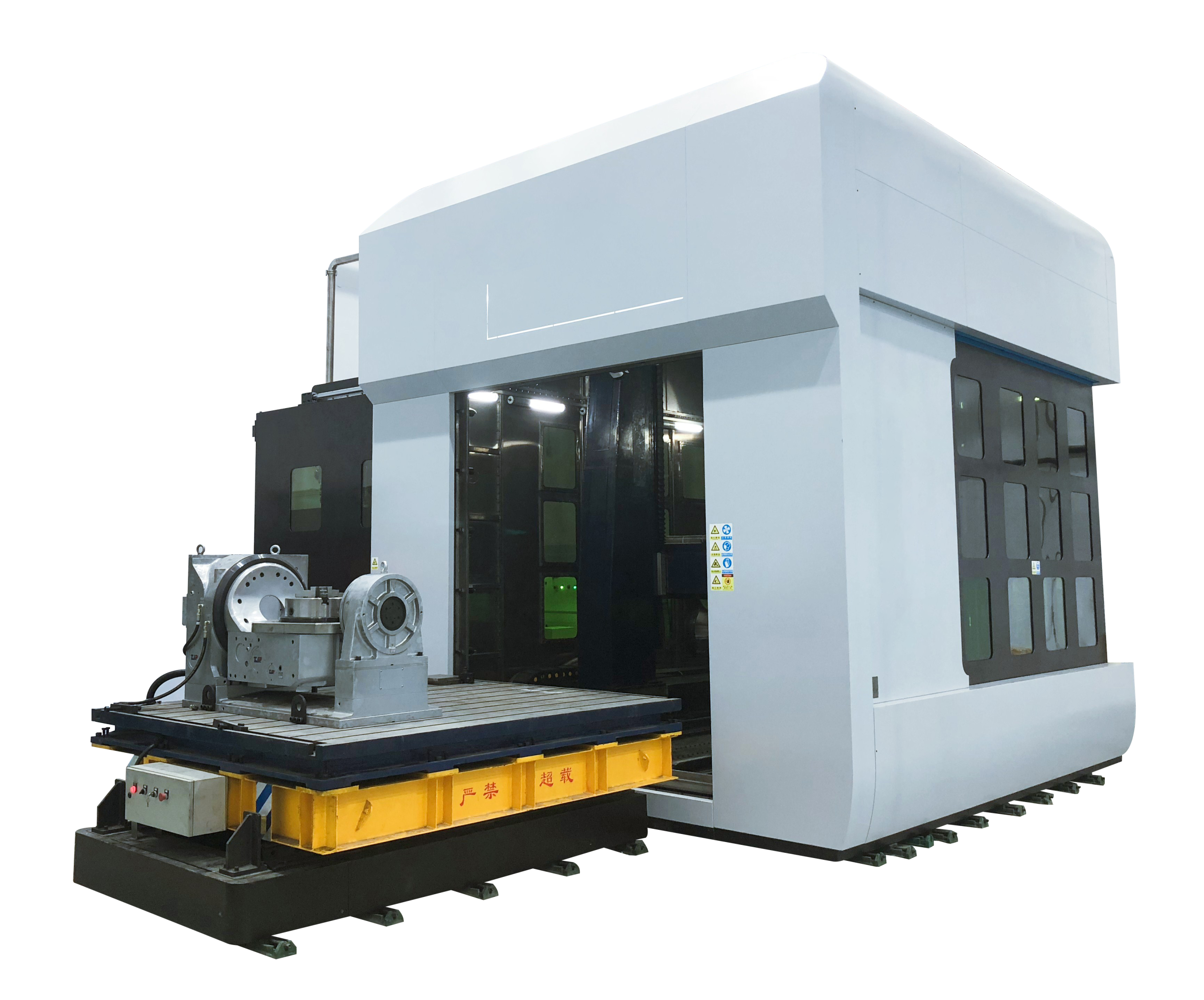

Gantry Machining Centers, CNC Turning Centers, Welding Robots, CNC Press Brake, Laser Cutting Machine and Helium Mass Spectrometer leak detection are among the equipment we use every day to produce our glove boxes. These facilities and equipment not only ensure the consistency of the products, but they also enable us to shorten the prototyping cycle of new product R & D and product customization.

Strict Quality Control Standards

We have deployed an ERP system that vigorously and systematically controls, tracks, and monitors the fulfilment process from placement of an order through design, manufacture delivery, installation & commissioning, and post-sale service.

Project Coordination

Project support covers configuration review, documentation, delivery planning, installation scope and operating requirements as agreed for the project.

Project Delivery
Delivery scope and schedule are defined in the project quotation.
Shipping
Shipping method and terms are defined for each destination.
Installation Planning
Installation and commissioning scope is confirmed per project.
Support Scope
Warranty and service terms are defined in the contract and quotation.
